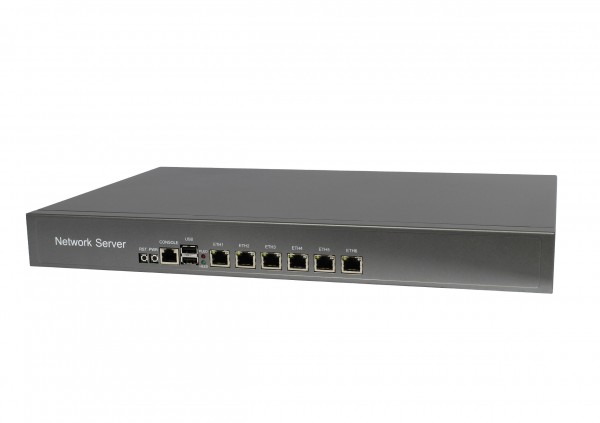

ALLNET Network Appliance/Server 19" NS6001 Celeron 3855U 1HU - Barebone

Processor

CPU

Integrated Intel® Celeron 3855U dual core 2 thread processor

Frequency

1.6GHz

Power

TDP 15W

Chipset

Based on Intel® skylake-u SOC platform

BIOS

64Mb Flash ROM

RAM

RAM

DDR4 2133MHz

Max Capacity

32GB

Slot

2*SODIMM

Display

Graphics

Intel® HD Graphics 510

Graphics Engine

DirectX12,OpenGL4.4

HDMI

N/A

CRT

1*VGA ,1920X1200@60Hz

Display

1*VGA

Ethernet

LAN1~LAN4

4*Intel WGI211AT Gigabit Ethernet, support Wake On LAN/PXE

LAN5~LAN6

2*Intel WGI211AT Gigabit Ethernet,, support network wake up, PXE/ POE function

Audio

Audio

N/A

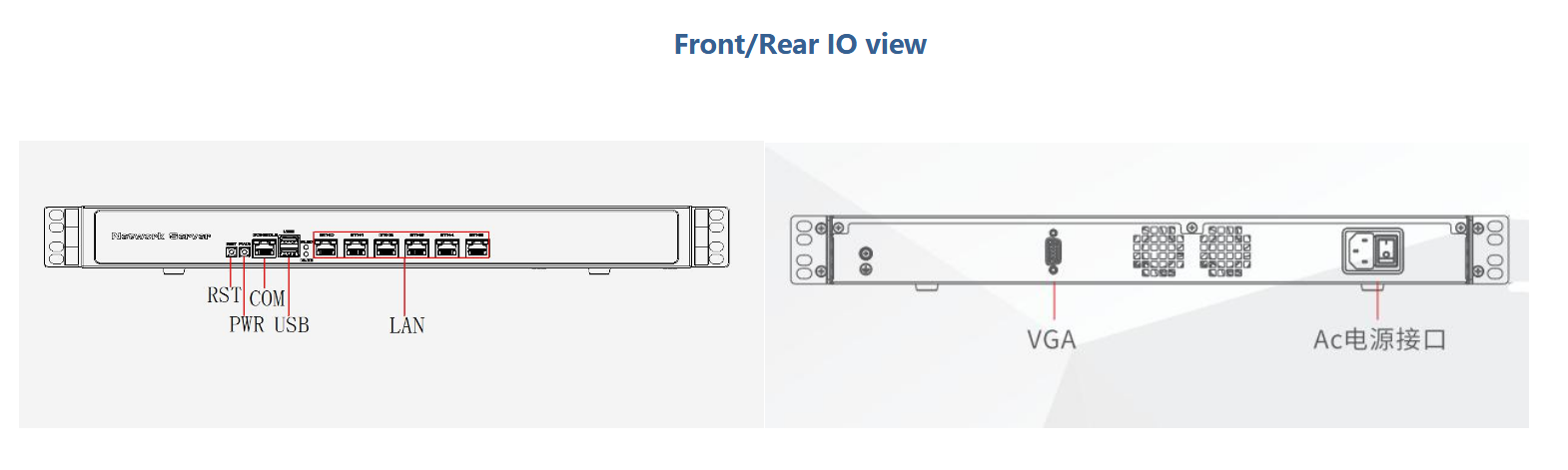

I/O Port

COM Port

1* CISCO standard RS232 serial

USB

2* USB2.0

Optical fiber

N/A

Phoenix Connector

N/A

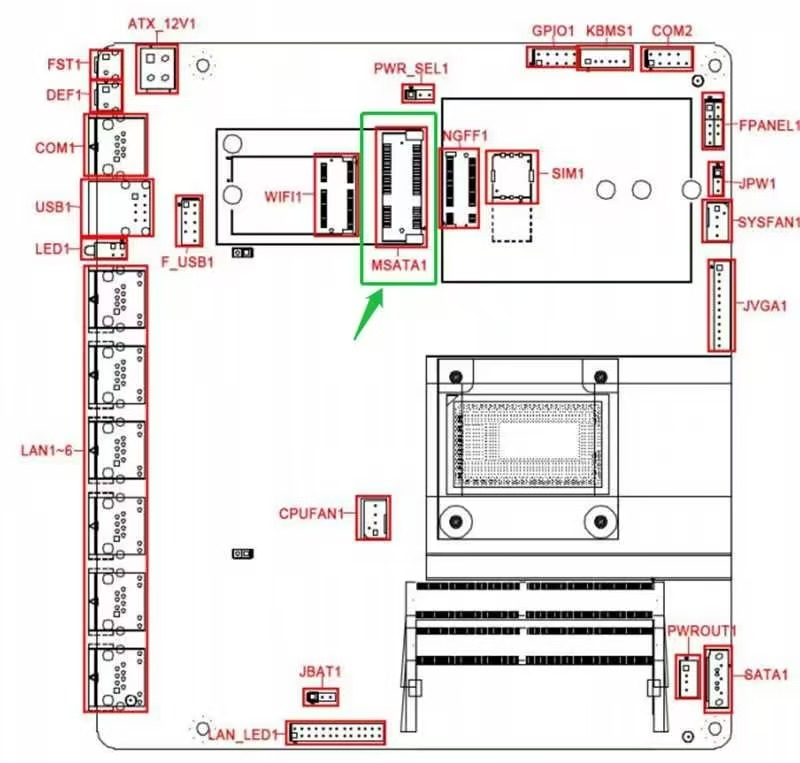

Expansion LEFT (see picture)

Mini PCIE

1* Mini PCIE slot,support only WIFI module (left see picture WIFI1)

Storage

SATA

1*2.5”HDD Expansion or 1*3.5”HDD Expansion

MSATA

1* MSATA SSD, transmission rate up to 3Gbps only for Flash (Middle Slot see picture MSATA1)

OS Support

Microsoft Windows

Windows 7/Windows10,64bit(not include OS code)

Linux

Ubuntu

Power Supply

Power Type

External open power supply

Voltage Input

AC 110~220V

Power Output

AC TO DC,60W

Structure

Structure

1U standard case, high quality galvanized steel

Installation

1U standard rack

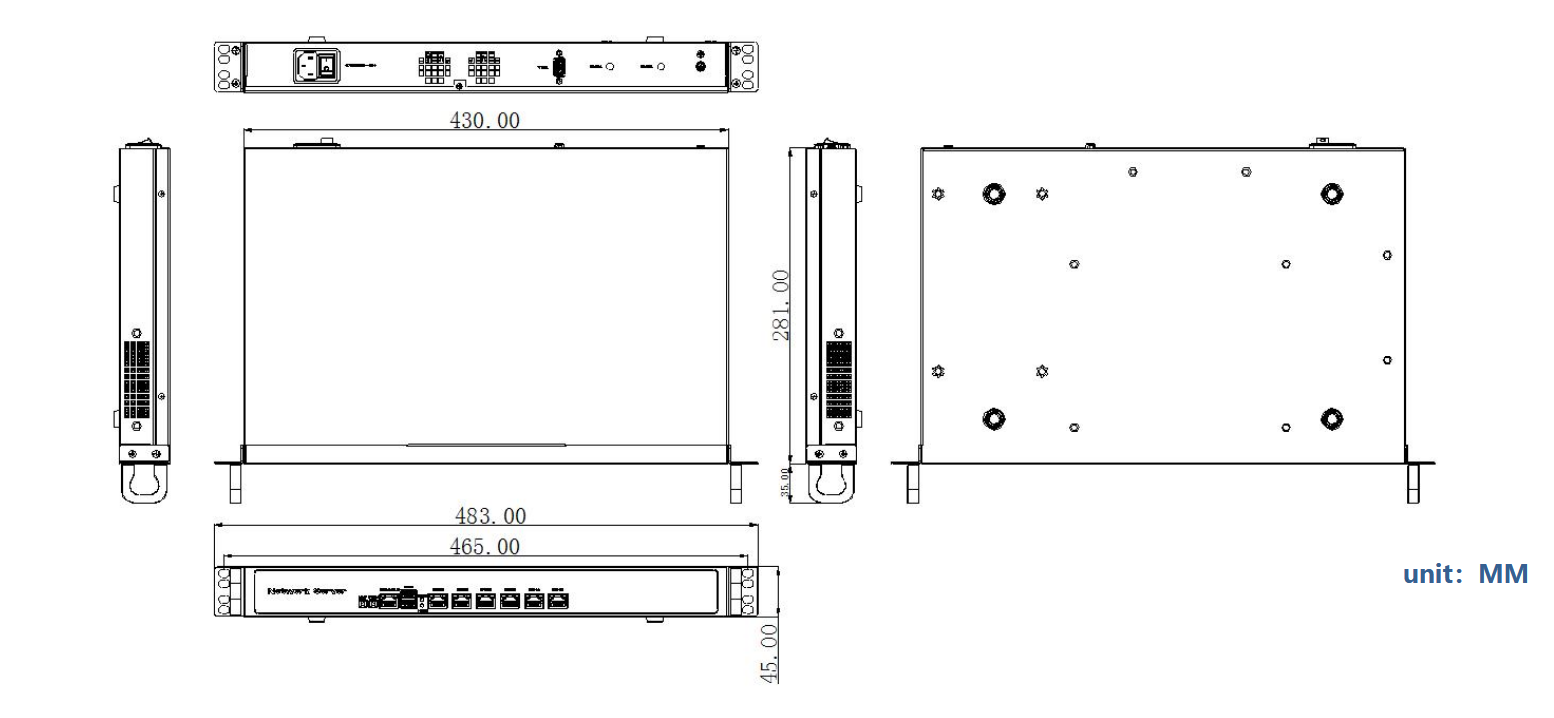

Dimension

430mm*281mm*45mm

Environment

Working Temp.

-10°C ~ 60°C

Storage Temp.

-20°C ~70° C

Relative Humidity

5%-95% relative humidity, non-condensing

Working Vibration

0.5g rms/5-500HZ/random/operating
