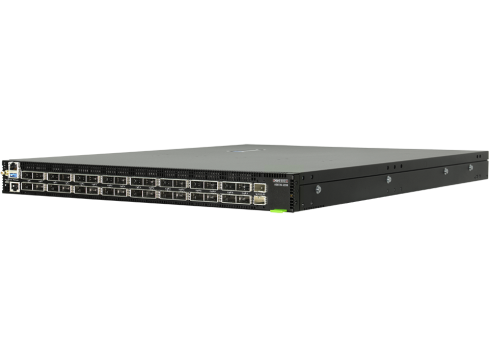

EdgeCore Switch full manged 32 Port • 32 x 400G QSFP-DD • 19" 1 HE • Datacenter Switch • Front-to back • DCS240 • 9726-32DB-O-48V-F

EdgeCore DCS240 • 9726-32DB-O-48V-F, 32 x 400G QSFP-DD ports, Broadcom Trident 4 12.8Tbps ASIC, Quad-core Intel Xeon® D1519 CPU, dual hot-swappable 1600W 48VDC PSUs (Power cables included) and 5+1 Fan Modules with Front-to-Rear airflow, rack mount kit (Front and back), 3 years Hardware Warranty

Features

• QSFP56-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 2 x 200G GbE or 4 x 100 GbE.
• Upper 16 ports support up to 24 W per transceiver.
  Lower 16 ports support up to 14 W per transceiver.
• QSFP56-DD switch ports also support 100 GbE QSFP28 and 40 GbE QSFP+, and via breakout cables 4 x 25 GbE or 4 x 10 GbE.
• Supports 400G ZR / Open ZR+ coherent transceivers in the upper 16 QSFP56-DD ports.
• Incorporates Broadcom Trident 4 switch series silicon.
• 1 RU form factor.
• Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.
• All ports on front; PSUs and fans accessible from rear.
• Hot-swappable, load-sharing, redundant 1500 W PSUs.
• 5+1 redundant, hot-swappable fan modules.
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.

Compatible Software Option

• Netscout – Packet Flow Switch

• SONiC
