Merrytek MC030S Parameter characteristics Input Rated Voltage 220-240VAC... mehr

Produktinformationen "Synergy 21 LED Sensor Bewegung Mikrowellen HF Radar"

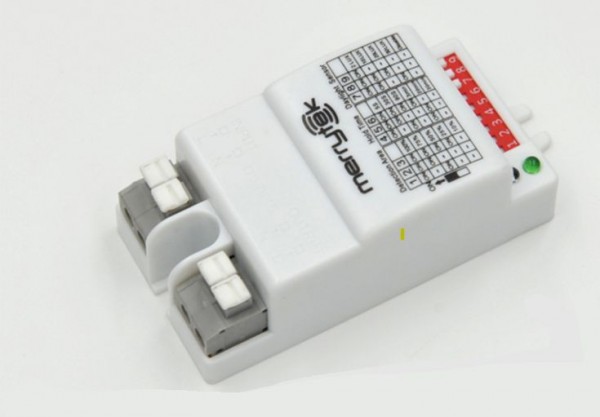

Merrytek MC030S

Input	Rated Voltage	220-240VAC 50/60Hz
	Stand-by Power	=0.1W
	Surge Test	LN: 1kV
Output	Output Control	ON-OFF
	Load Capacity	400W(Inductive/LED) ; 800W(Resistive)
	Max. Surge Capacity	30A (50% Ipeak, twidth =500us, 230Vac full load, cold start); 60A (50% Ipeak, twidth =200us, 230Vac, full load, cold start)
Sensor parameters	Operating Frequency	5.8 GHz ±75MHz, ISM wave band.
	Transmitting power	1mW Max.
	Detecting Radius	Ceiling installation 3m height: 1m/s = 2.5m, 0.3m/s = 3.5m Test condition: Product setting 100% sensitivity, 60 ? indoor open space
	Mounting Height	2.5-6m (ceiling mounting), 2-3m (wall mounting)
Environment	Operating Temperature	-25~60°C
	Storage Temperature	-40?~80?, Humidity: =85%(Non-condensing)
	Maximum Shell Temperature (Tc)	80?
Certification Standards	Certificate	CE, RED, TUV
	Environmental Requirement	Compliant to RoHS 2.0, Reach
	IP Rating	IP20
	Product Category	Class ?
Other	Wiring	Press-in type terminal block, wiring 0.75-1.5 mm2
	Installation	Built-in
	Package	Bubble bag + Clapboard + Carton(K=A)
	Net Weight	37.8±3g
	Lifetime	5 years warranty @Ta
