SPI-WL4 4-Channel ESP32 WLED Digital Controller (WiFi+2.4G) • 4-Channel SPI Controller •... mehr
Produktinformationen "Synergy 21 Pixel LED Controller SPI-Serie WLED (2.4GHz+Wifi) 4 Kanäle *Milight/Miboxer*"

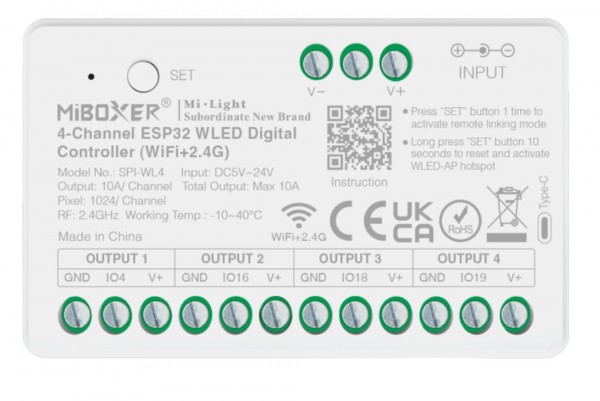

SPI-WL4
4-Channel ESP32 WLED Digital Controller (WiFi+2.4G)

• 4-Channel SPI Controller
• Support WiFi+2.4G wireless transmitting technology
• Built in SPI protocol
• Adjust different modes, color, brightness and change dynamic illumination

Features

SPI-WL4 4-Channel ESP32 WLED Digital Controller (WiFi+2.4G) , compatible with DC5-24V input, specially designed for SPI LED srtrip, support WiFi+2.4GHz wireless technology, It can change dynmaic color, brightness, select dynamic mode and have music function.

  • 4 individual output and control 4 zone SPI led strip independently
  • Pixel Dots: Max 1024/ Channel
  • Output Signal :SPI(TTL) 800Kbs
  • Compatible with single color/CCT/ RGB/ RGBW/ RGB+CCT SPI LED strip light
  • Color, pixel dots, speed, static and dynamic mode, music mode are adjustable
  • Dynamic mode : 28 kinds of white color, 80 kinds of colorful modes,
  • Support to change color, brightness, deepth, speed of all modes
  • 4 kinds of music mode, built in internal microphone and smart phone microphone catch signal
  • Freely switch dynamic or static or music mode
  • Setting boot animation via Tuya Smart App
  • Have DND mode and usual used in power failure area to save power.

Compatible chips

WS281X, SK6812/WS2814(RGBW), TM1814, 400kHz,TM1829, USC8903, APA106/P L9823, TM1914, FW1906(GRBCW), USC8904(RGBW), SW2805(RGBCW), SM16825(RGBCW), SW2811(White), WS281X(WWA), APA102, LPD8806, LPD6803, PP9813

Parameters

Product Name: 4-Channel ESP32 WLED Digital Controller
Model No.: SPI-WL4
Input Voltage: DC5V~24V
Output Current: Max 10A
Pixel: 1024 Pixel/ Channel
Standby Power: 0.7W
Protocol: WiFi + 2.4GHz RF
Control Distance: RF: 30m
IP Rate: IP20
Working Temperature: -10~40°C
Dimension: 70*44*17.5mm
EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Safety Standard (LVD): EN 62368-1; 2020+A11;2020
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
Warranty: 5 Years

Produktmerkmale:

Ampere: max 10
CC oder CV: CV
Dimmbar: ja SPI
Grösse: 70*44*17,5
LED - Gehäusefarbe: weiß
LED - Gehäusematerial: Kunststoff
Produktname: LED Controller - Digital
Schutzklasse: IP20
Volt: 5-24
