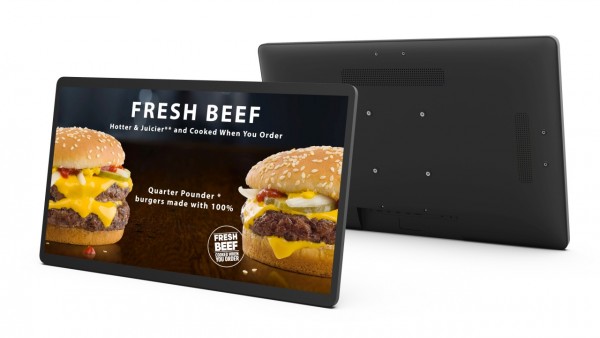

ALLNET High Performance Display 14 Zoll, Android 12, RK3588, NFC, PoE, HDMI In, Farbe schwarz
- Bestand: 0
- Artikel-Nr.: 212864
- Hersteller: ALLNET
- Hersteller Artikel-Nr.: Rocket 140-B S2
- EAN Nummer: 4038816127464
- Gewicht: 2kg
- Garantie: 12 Monate
- Fragen zum Artikel?
Downloads
Konformitätserklärung
Handbuch
Handbuch EN
EU RoHS und REACH Erklärung
Google zertifiziertes Allnet Display 14 Zoll, TV Style, Interaktives Touch Kioskterminal, Android 12, RK3588, NFC, Farbe schwarz
- Hochperfomanter RK3588 Chipsatz Octa Core (4xA73+4xA55)
- 8GB Arbeitsspeicher, 128GB Hauptspeicher
- Wifi 6 Gigabit Wlan
- NFC (ext. USB NFC Modul zur Fixierung an der Seite)
- Android 12 & Linux
- Incell Touchoberfläche
- HDMI Eingang für ext. Geräte
|
System |
CPU |
RK3588 Quad core cortex A55+Quad core cortex A76 |
|
RAM |
8GB | |
|
Internal memory |
32GB | |
|
Operation system |
Android 12 | |
|
Display |
Panel Size |
14"LCD |
|
Panel Type |
IPS | |
|
Resolution |
Standard 1920*1080/ 3840x21060 über Easy DPI Changer | |
|
Display Colors |
16.7M Colors | |
|
Color Gamut |
sRGB 99% | |
|
Display mode |
Normally black | |
|
Viewing angle |
85/85/85/85(L/R/U/D) | |
|
Contrast ratio |
1000:1 | |
|
Luminance |
250cdm2 | |
|
Aspect Ratio |
16:9 | |
|
Response Time |
14ms | |
|
Back-light Type |
Eled | |
|
Touch |
Model Type |
Incell Touch |
|
Number of points |
10-Point | |
|
Interface for touch |
HID-USB | |
|
Network |
WiFi |
802.11b/g/n/a/ac/ax (WiFi 6) |
|
Ethernet |
100M/1000M | |
|
Bluetooth |
Bluetooth 5.0 | |
|
Interface |
Power Jack |
DC power input |
|
MIC IN |
External microphone input | |
|
Earphone Output |
3.5mm earphone output | |
|
Type-c |
Full Function ( Except for charging function ) | |
|
SIM Slot |
Artikel 219024 | |
|
USB |
Standard USB 2.0 Host | |
|
USB |
USB 3.0 | |
|
USB |
USB 3.0 | |
|
HDMI IN |
Support HDMI In for Monitor | |
|
RJ45 |
Ethernet interface | |
|
Other |
Product Colors |
white/Black |
|
VESA |
100mm*100mm | |
|
Button |
Power/Vol+/Vol- | |
|
Other Power |
Speaker |
4O*5W*2 |
|
Microphone |
Built in dual Microphone , Support noise reduction and echo cancellation | |
|
NFC |
no | |
|
G-sensor |
Support 90 degrees | |
|
Camera |
no | |
|
Language |
Multi-language | |
|
Certificates |
CE/FCC | |
|
Power Type |
Adapter | |
|
Input Voltage |
DC 12V/4A | |
|
Power consumption |
=25W | |
|
Working Surrounding Accessories |
Storage Temperature |
-20°---60° |
|
Working Temperature |
0°---50° 10~90%RH | |
|
Adapter |
Adapter,12V/4A | |
|
Working Surrounding |
User manual |
yes |
Produktmerkmale:
| Abmessung: | 336,22 x 209,32 x 27,6 |
| Arbeitsspeicher (RAM): | 8 |
| Auflösung Panel: | 1920x1080 |
| Betriebssystem: | Android 12 |
| Bluetooth: | ja |
| Chipset: | RK3588 |
| Diagonale: | 14 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 128 |
| IP Schutzklasse Display: | IP 20 |
| Kamera: | nein |
| Mobilfunk: | USB Stick |
| Montageart: | Vesa 100x100 |
| NFC&RFID: | 13,56MHz |
| Produktart: | Display |
| Stromversorgung: | PoE und Netzteil |
| Touchscreen: | Capacitiv |
| Video Eingang: | HDMI |
| WLAN: | 2,4/5 |
