ALLNET Switch smart managed Layer2 12 Port • 12x SFP+ 10GbE • 19" • ALL-SG9312M-10G • Core-Switch • Redundant Power Option

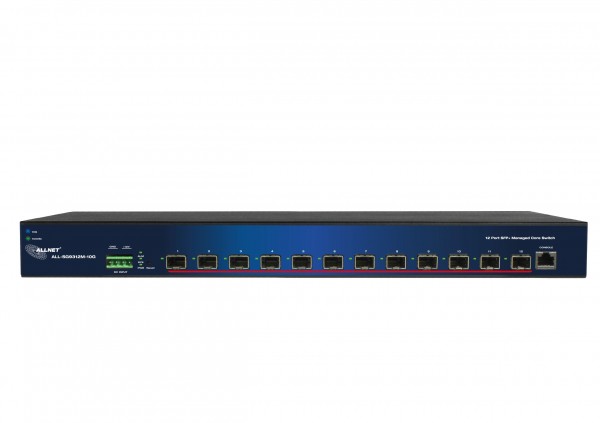

Vorschau: ALLNET Switch smart managed Layer2 12 Port • 12x SFP+ 10GbE • 19" • ALL-SG9312M-10G • Core-Switch • Redundant Power Option

Artikelbilder ähnlich, können von der Produkt-Beschreibung abweichen!

Preise zzgl. gesetzlicher MwSt.
zzgl. Versandkosten

Sofort versandfertig, Lieferzeit 1 Tag Express

Downloads

Konformitätserklärung

EU RoHS und REACH Erklärung

Bestand: 0
Artikel-Nr.: 206883
Hersteller: ALLNET
Hersteller Artikel-Nr.: ALL-SG9312M-10G
EAN Nummer: 4038816206886
Gewicht: 4kg
Garantie: 24 Monate
Fragen zum Artikel?

ALLNET Switch smart managed 12 Port 10Gigabit / 12x SFP+ / "ALL-SG9312M-10G" Core Switch... mehr

Menü schließen

Produktinformationen "ALLNET Switch smart managed Layer2 12 Port • 12x SFP+ 10GbE • 19" • ALL-SG9312M-10G • Core-Switch • Redundant Power Option"

ALLNET Switch smart managed 12 Port 10Gigabit / 12x SFP+ / "ALL-SG9312M-10G" Core Switch

Highlights:

Support 12*10G SFP+ ports Core-Switch
Support Web UI for configuration
Support Console port with CLI command
Support HW monitor Alarm
Redundant 12VDC Power-INPUT

Dieser Switch ist ein 12-Port 10G SFP+ L2 Switch. Der Switch bietet außergewöhnlich intelligente Web-Management-Funktionen, wie VLAN, QoS, RSTP, IGMP Snooping, LACP, IEEE802.1X, Strom Control...etc. Der Switch ist standardmäßig in einem 19"-Rack untergebracht, um in eine Rack-Umgebung zu passen. Mit diesen Funktionen ist der Switch eine hervorragende Wahl für mittlere oder große Netzwerkumgebungen, um die Netzwerkverbindung und Effizienz zu stärken. Durch den optionalen Redundanten 12VDC Strom-Eingang kann der Switch auch über ein optionales externes Netzteil betrieben werden, wenn das Hauptnetzteil kein Strom liefert.

Technical Details:

Model No.	ALL-SG9312M-10G
Key Components	1. RTL9313 Flash IC: MXIC 32MB (up to 64MB, optional) DDR: 2Gb (up to 4Gb, optional)
I/O ports	12 x 10G SFP+ ports Reset Button: reset to default setting, re-start system Console port by RJ45 type
LED Define	PWR: Green LED Off: power off or fail On: power on SYS: Green LED Off: power off or fail On: system is ready Blinking: system booting up Alert: Red LED Off: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. 1-12 Port LED: (SFP+) Link/ACT: Off: port disconnected or link fail Green on: 10G bps connected Amber on: 1000Mbps connected Blinking: sending or receiving data
HW feature	IEEE802.3az EEE IEEE802.3ah 10GBase-T MAC address Table: 32K Packet buffer size: 16Mbit Jumbo Frame: 12K bytes
System Monitor	HW Monitor IC: ADT7463 Voltage Monitor Input Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHYVoltage: 1.1V (+/- 5% Alarm Threshold) MACVoltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C
Power Input	Internal power supply Input: 90~264VAC/47~63Hz Output: 12V/3A (TBD)
Reset button	Support reset to default configuration
Dimension	441(W) x 131(D) x 44(H) mm
FAN Design	Fan-less
Temperature	Operating: 0 ~ 50°C Storage : -40 ~ 70°C
Humidity	Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing)

Hardware Specs

Status	System Information
	Logging Message
	Port	Statistics
		Error Disabled
		Bandwidth Utilization
	Link Aggregation
	MAC Address Table	16K
Network	IP Address	Static / Dynamic
Network	System Time	SNTP / From Computer / Manual Time
Port	Port Setting	State / Speed / Duplex / Flow Control
	Error Disabled	Recovery Interval	ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood
	Link Aggregation	Group
		Port Setting	State / Speed / Flow Control
		LACP
	EEE
	Jumbo Frame	12K Byte
VLAN VLAN MAC Address Table Spanning Tree	VLAN	Create VLAN
	Priority Setting	VLAN Configuration
	Power Limit	Membership
	Power Show	Port Setting
	Voice VLAN Protocol VLAN	Property
		Voice OUI
		Protocol Group
		Group Binding
	MAC VLAN	MAC Group
	MAC VLAN	Group Binding
	Surveillance VLAN	Property
	Surveillance VLAN	Surveillance OUI
	GVRP Surveillance VLAN Dynamic Address	Property
		Membership
		Statistics
		Aging Time
	Static Address Filtering Address Property	State / Operation Mode / Path Cost / BPDU Handlin	Operation Mode : STP/RSTP/MSTP
MAC Address Table	Port Setting
	MST Instance
	MST Port Setting
Spanning Tree Discovery	Statistics
	LLDP	Property
	MST Instance	Port Setting
	MST Port Setting	MED Network Policy
	Statistics	MED Port Setting
Discovery Multicast Multicast Security Security ACL	LLDP General General IGMP Snooping MLD Snooping IGMP Snooping MVR MLD Snooping RADIUS	Packet View
		Local Information
		Neighbor
		Statistics
		Property	Unknown Multicast Action / Multicast Forward Method
		Group Address
		Router Port
		Forward All Table
		Throttling
		Filtering Profile
		Filtering Binding
		Property	State / Version / Report Suppression
		Querier
		Statistics
		Property	State / Version / Report Suppression
		Statistics
		Property	State / VLAN / Mode / Group Start / Group Count / Query Time
		Port Setting
		Group Address

	TACACS+ AAA
		Method List
		Login Authentication	Console / Telnet / SSH / HTTP / HTTPS
	Management Access TACACS+ AAA	Management VLAN
		Management Service	Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout
		Management ACL
		Management ACE
	Authentication Manager	Property
	Authentication Manager	Port Setting
ACL QoS	Port Security	Sessions
	Port Security
	Protected Port Storm Control DoS
			State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)
		Property
	Port Security	Port Setting
	Dynamic ARP Inspection Storm Control	Property
	Dynamic ARP Inspection Storm Control	Statistics
	DHCP Snooping Dynamic ARP Inspection	Property
		Statistics
		Option82 Property
		Option82 Circuit ID
	IP Source Guard MAC ACL	Port Setting
		IMPV Binding
		Save Database

	MAC ACE IPv4 ACL IPv4 ACE


	IPv6 ACL
	IPv6 ACE
	ACL Binding
	General	Property	CoS / DSCP / CoS-DSCP / IP Precedence
	IPv6 ACL	Queue Scheduling	Strict Priority / WRR
	IPv6 ACE	CoS Mapping
	ACL Binding	DSCP Mapping
QoS Diagnostics Diagnostics Management	General Rate Limit Logging	IP Precedence Mapping
		Ingress / Egress Port
		Egress Queue
		Property	Console / RAM / Flash
		Remote Server
	Mirroring Ping
	Mirroring Ping
	Traceroute Copper Test
	Traceroute Copper Test
	Fiber Module
	UDLD Traceroute	Property	Message Time
	UDLD Traceroute	Neighbor
	User Account
	Firmware UDLD Configuration	Upgrade / Backup	Action (Upgrade / Backup) / Method (TFTP / HTTP)
		Active Image	Active Image / Backup Image
		Upgrade / Backup	Action (Upgrade / Backup) / Method (TFTP / HTTP)
Management	User Account	Save Configuration	Source File / Destination File, Restore Factory Default
RMON	SNMP	View
	SNMP	Group
	Configuration	Community
	Configuration	User
	SNMP Statistics History Event Alarm	Engine ID
		Trap Event	Authentication Failure / Link UP_Down / Cold Start / Warm Start
		Notification
MARKS	Safety	LVD EN62368:2014
	EMC	FCC Part 15, Subpart B: ANSI C63.4-2014	class A
	EMC	CE EN55032: 2015+AC:2016 EN55035: 2017	class A

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/12
Belüftung Switch:	Mit Lüfter
Einsatzort Switch:	19"
Extra Features:	12VDC Redundant Power Input
LAN Geschwindigkeit:	10GBit/s
Management:	smart managed (WebGui)
SFP Geschwindigkeit:	SFP+ 10GBit
SFP Port Anzahl:	12x SFP+
