Items

Specifications

Model No.

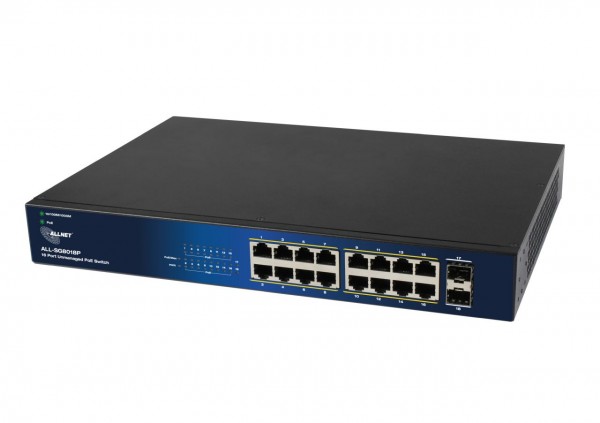

ALL-SG8018P

Key Components

RTL8382L+RTL8218D

IP808ARx2

I/O ports

16x GbE ports, RJ45

2x SFP Giga Ports

PoE ports

Port# 1~ 16

IEEE802.3at, IEEE802.3af

LED Define

PWR: Green LED

• Off: power off or fail
• On: power on

PoE Max.: Green LED

• Off: No over PoE max power Alert
• On: Over PoE max power Alert

16 RJ45 Port LED: one bi-color LEDs on daughter board

Link/ACT: Green/Amber

• Off: port disconnected or link fail
• Green on: 10/100/1000Mbps connected
• Blinking: sending or receiving data

PoE: Green LED

• Off: PoE power output off
• Green on: PoE power output on

SFP Port:

- Off: disconnected or fail

- Green: 100/1000Mbps connected

- Blinking: data transmitting

HW feature

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3x flow control & back pressure

IEEE802.3z 1000Base SX/LX

IEEE802.3az EEE Disable

IEEE802.3at, IEEE802.3af

Switch Capacity: 36Gbps bi-direction

Forwarding Mode: Store and Forward

MAC address Table: 8K

Packet buffer size: 4.1M bit

Jumbo Frame: 10K bytes

Power Input

Internal power supply

Input: 100-240V AC

Output: 280W

E-cap life time >3 years @ 40?

PoE power pin-out

Alternative A (Pin 1,2/3,6)

PoE Output power capacity

Maximum output :30W per each port

1. Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+
2. Automatically discover the connection of PD device and immediately sends power to it
3. Auto disable port if the port current is over 700mA or short happens
4. Priority can be configured and default setting is lower port NO. has high priority
5. The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.

Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable

PoE Power Budget

240Watt

Dimension

330mmx230mmx44mm

FAN Design

FANLESS

Temperature

Operating: 0 ~ 40°C

Storage : -40 ~ 70°C

Operating: 10% ~ 90% RH (non-condensing)
